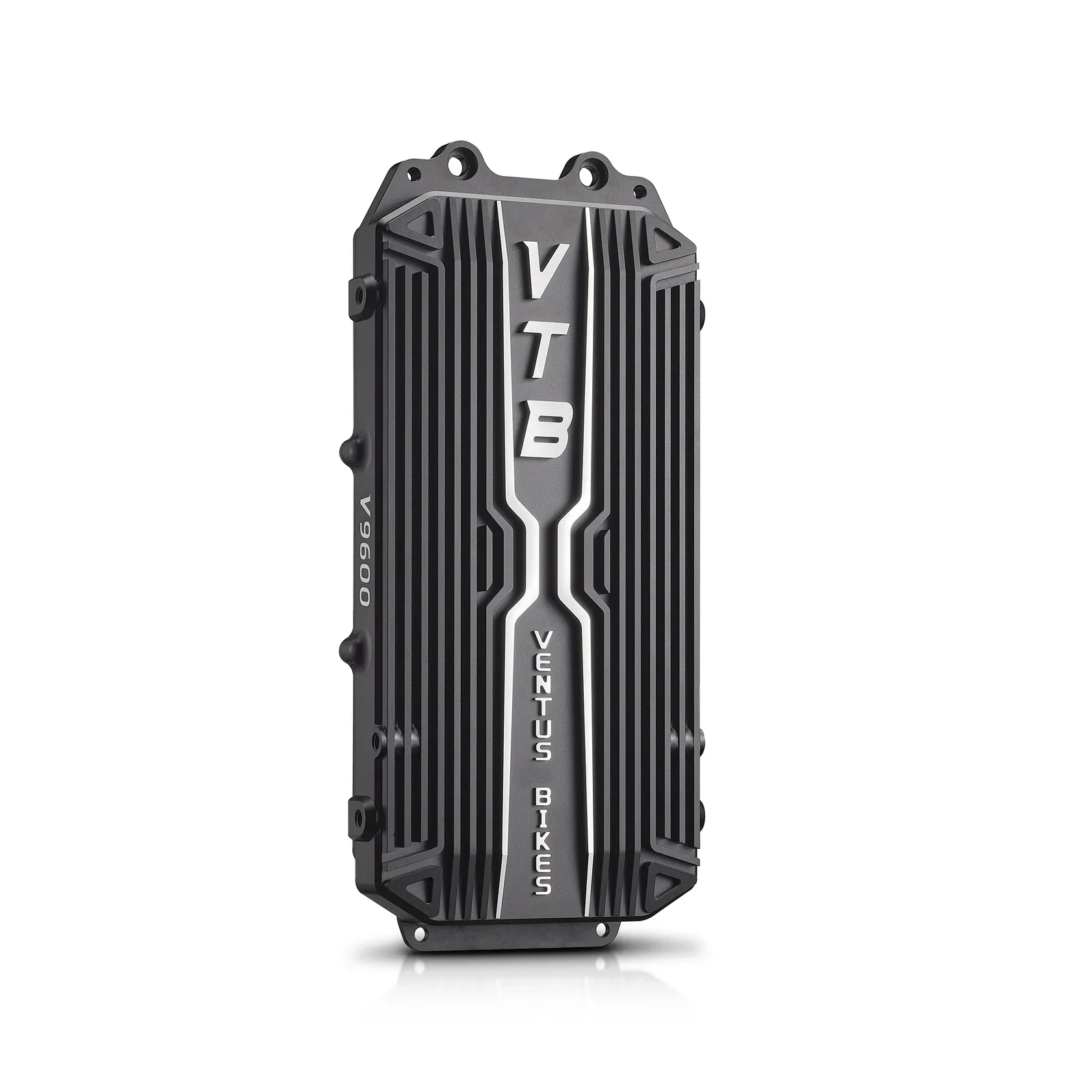

Ventus Bikes VTB V9600 Controller (Non-Kit Version)

Ventus One Controller Upgrade for Surron, E-Ride Pro, Talaria & 79 Bikes

Wish you could have Ventus One level power on your bike? Now you can upgrade your Sur-Ron, E-Ride Pro, Talaria or 79 Bike with the Ventus Bikes VTB V9600 Controller, a high-performance and fully customizable controller designed by the same company who brought us the awe-inspiring Ventus One electric dirt bike. Engineered to maximize power output, efficiency, and throttle precision, this state-of-the-art controller delivers unparalleled acceleration, adaptive power management, and advanced regenerative braking for the ultimate riding experience.

Colored Front plates are sold separately Here

Looking for a full kit? Click here

Controller Specification:

• Maximum Bus Phase Current: 500A/960A
• Peak Power: 44kW
• Operating Temperature Range: -25°C to 80°C
• Sinusoidal Vector Control
• Voltage Range: 30V-99V (Limit), 48V-84V (Operating)

Controller Features:

• Fine-tunable throttle response
• High-reliability redundant design
• Adaptive compensation for low throttle at low battery levels
• 3 power modes, 5 riding modes for quick switching
• 5 regenerative braking modes for quick switching
• Linear regenerative electronic braking, energy-saving up to 30%
• Customizable super-linear throttle handle
• Customizable throttle curve, burst power, high-speed power compensation, speed percentage
• Compatible with mainstream models including E-Ride Pro, Sur-Ron Light Bee, Ultra Bee, TALARIA Sting, TALARIA X3, 79 bike
• Full-function APP, available for both Apple and Android devices
• High-resolution color screen instrument panel
• Sensory unlocking
• Bluetooth binding with battery BMS for the instrument panel
• CNC radiator
• IP67 waterproof for the entire system

Package Contents:

• Controller x1
• Color Screen Instrument Panel x1
• Instrument Panel Bracket x1
• Throttle Handle x1
• Switch Assembly x1
• Thumb Throttle x1
• Vehicle-specific Adapter Cable x1


How to Choose Your Hall Sensor

• Surron Light Bee + Original Motor – To Hall Sensor (6 Pin Square)
• Surron Light Bee + VTB Motor – No need adaptor / N/A
• Surron Light Bee + Third Party Motor – To Encoder (8 Pin Square) KO (Encoder) / EBMX / Trop / Sotion
• Surron Light Bee + Third Party Motor – To Hall Sensor (6 Pin Square) – KO (Hall)
• Surron Ultra Bee + Original Motor – TBD
• Surron Ultra Bee + VTB Motor – No need adaptor / N/A
• Surron Ultra Bee + Third Party Motor – TBD
• Talaria Sting + Original Motor – To Talaria Sting Motor Exclusive (8 Pin Square)
• Talaria Sting + VTB Motor – No need adaptor / N/A
• Talaria Sting + Third Party Motor – To Talaria Sting Motor Exclusive (8 Pin Square)
• Talaria X3 + Original Motor – TBD / Not supported
• Talaria X3 + VTB Motor – No need adaptor / N/A
• Talaria X3 + Third Party Motor – TBD
• 79 Bikes Falcon + Original – TBD
• 79 Bikes Falcon + VTB Motor – No need adaptor / N/A
• 79 Bikes Falcon + Third Party Motor (KO Encoder) / EBMX / Trop / Sotion) – To Encoder (8 Pin Square)
• 79 Bikes Falcon + Third Party Motor (KO Hall) – To Hall Sensor (6 Pin Square)

VTB LCD Screen: Included
VTB Hand Controls: Included

Compatible Motors:

• VTB Beast 28kW
• VTB Beast 35kW
• Sur-Ron Light Bee Factory
• Sur-Ron Ultra Bee Factory
• TALARIA Sting Factory
• 79 bike Falcon Factory
• QS165
• LTXS
• Sotion FW01
• Sotion Talaria

Compatible Batteries:

Series 16-22, compatible with various models of both factory and modified batteries.

VTB App: Real-time status
