EBMX Motor, controller, fx throttle Bundle | Talaria MX3, MX4, MX5
EBMX XTA-60 + X-9000 V3 Bundle | Talaria MX3, MX4, MX5
Buy an EBMX XTA-60 Core Motor and X-9000 V3 Controller, get a free FX Throttle
If you are building a serious Talaria and want a package that actually makes sense together, this is one of the cleanest ways to do it. This bundle pairs the EBMX XTA-60 Core Motor with the EBMX X-9000 V3 Controller, then adds a free FX Twist Throttle to finish off the cockpit with better feel and control.
The big advantage here is that these parts are not random upgrades thrown in the same cart. The X-9000 V3 already supports preloaded XTA-60 motor tunes, so you are starting with a motor and controller combo that was built to work in the same performance conversation. That matters when you are chasing stronger acceleration, cleaner throttle response, higher power ceilings, and a setup that feels more refined on the trail, in open desert, or on hard street pulls.
Why this bundle stands out

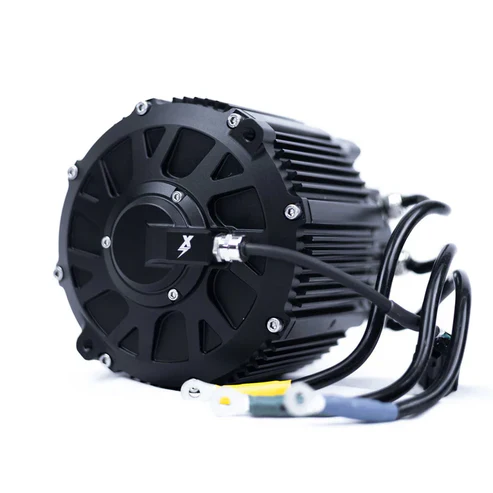

The EBMX XTA-60 Core Motor is built around a 57mm stator with a 115KV wind, giving Talaria riders a motor that is made for real power, not just spec sheet hype. EBMX lists it at 41kW peak power under load, with 35kW real-world usable power in a 72V test setup. That translates into strong pull, fast response, and a torque curve that stays easier to manage when terrain gets technical or traction gets sketchy.
The X-9000 V3 Controller is the other half of what makes this bundle special. With 30x Infineon MOSFETs, a 6-layer PCB, CNC copper busbars, and support for up to 120V builds, this controller is made for riders who want room to grow. You also get Bluetooth tuning through the EBMX X-Series App, live metrics, adjustable throttle and regen settings, and integrated IMU support for added wheel control.

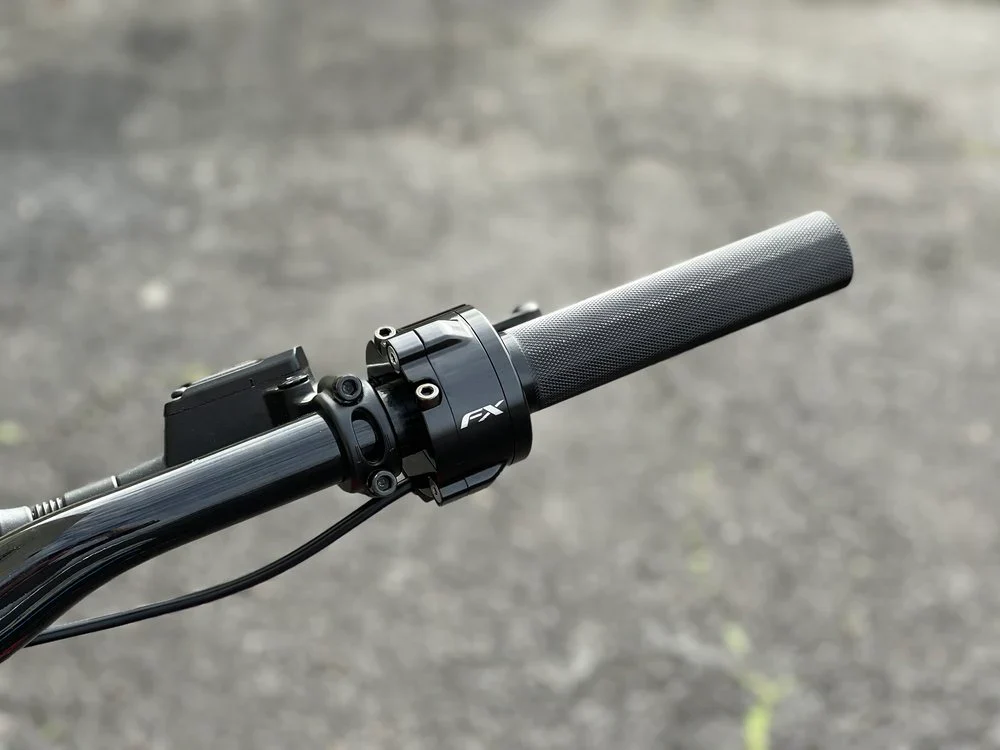

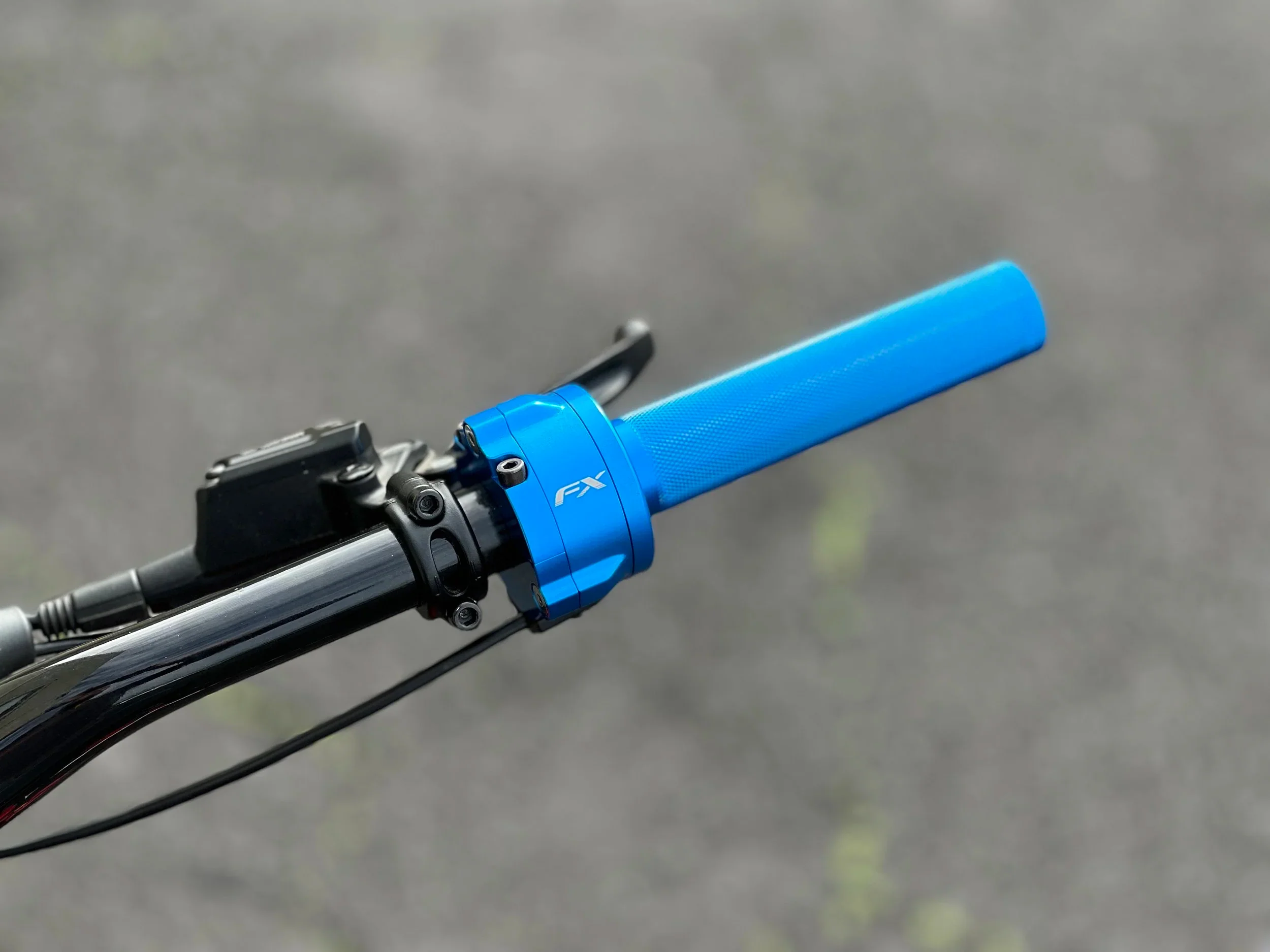

The free FX Twist Throttle is not filler. It is a real upgrade that improves how the bike feels every time you ride it. With a Genuine Honeywell Hall sensor, 65° short rotation, and adjustable spring tension, it gives you more precise and more connected input at the bar. On a high-output setup, that smoother throttle feel makes a difference.
Technical information
- EBMX XTA-60 Core Motor
- 57mm stator
- 115KV motor wind
- EBMX IMP rotor
- 12,000 rated RPM
- 41kW peak power at 90V
- 35kW real-world power at 72V
- 1000 to 1100A phase amps
- EBMX X-9000 V3 Controller
- 50kW continuous power
- 60kW peak power
- 48V to 110V operating range, supports up to 120V builds
- 1000A continuous phase current
- 1600A burst phase current
- Field-Oriented Control, VESC based
- Custom EBMX VESC firmware
- Integrated IMU with Wheel Lift Assist and E-Clutch support
- IP67-rated waterproof CNC alloy housing
- Bluetooth tuning through the EBMX X-Series App
- Updated SW102T full-color display

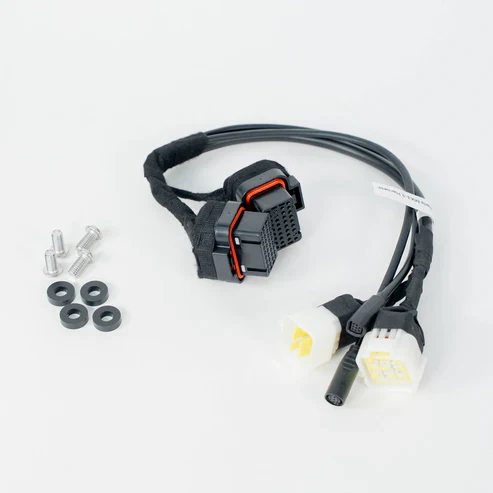

- Removable harness design for easier servicing
- Preloaded support for EBMX XTA-60 motor profiles
- Note: Harness sold separately, not included
- Free FX Twist Throttle
- CNC-machined 6061-T6 billet aluminum body
- Genuine Honeywell Hall sensor
- 65° twist rotation
- Adjustable spring preload with 3 tension levels
- 120mm pre-wired cable
- Grade 5 titanium hardware
- IP66 weather protection
- Fits standard 7/8" (22.2mm) handlebars
Fitment
- Talaria Sting MX3
- Talaria Sting MX4
- Talaria Sting MX5
Who this bundle is a good fit for
- Talaria riders building a higher-power bike with a matched EBMX motor and controller setup
- Trail and enduro riders who want stronger torque, cleaner throttle control, and better tuning flexibility
- Street, race, and performance-focused builds where control, thermal stability, and upgrade headroom matter
