RFLOXA MAX Drop Crown Triple Clamp Kit – For Hawk31 / Hawk32 / PRO Forks

Take control of your front-end setup with the RFLOXA MAX Drop Crown Triple Clamp Kit — the ultimate widened and dropped clamp upgrade for RFLOXA and FastAce fork systems. Built for electric dirt bike riders pushing the limits, this CNC-machined system improves steering geometry, tire clearance, and rigidity — all while offering vibrant color options and full rotor compatibility.

Whether you’re running a Hawk31, Hawk32, or FastAce ALX13RC/AHX12RV fork, this kit provides the tuning flexibility and strength needed for aggressive off-road riding.



---



🛠 Key Features:

• MAX Widened Stability

  • Widened by +16mm over stock clamps for greater tire clearance

  • Handles tire widths up to 90mm

  • Increases fork compression room for plush travel

• Drop Crown Design

  • 17mm drop in the upper crown lowers fork position

  • Lets you dial in handlebar height and geometry for a more aggressive riding posture

  • Ideal for taller tires or 21” wheel conversions

• CNC-Machined Strength

  • Precision-machined from high-strength aluminum billets

  • Dual-row clamp bolts on upper crown, triple-row on lower for max rigidity

  • Built to absorb major impacts and maintain precise steering feel

• Brake Rotor Compatibility & Flange Spacer

  • AL7075 flange spacer offsets the rotor correctly for upgraded setups

  • 12-screw staggered system (6 on rotor, 6 on spacer) for even braking force

  • Supports 203mm, 220mm, 240mm rotors and caliper mounts

  • Note: Not directly compatible with Volar or Rippin Moto brakes (collet adapter required)

• Lightweight Engineering

  • Hollowed drop crown cuts weight while preserving strength

  • Every component has been engineered for performance + durability



---

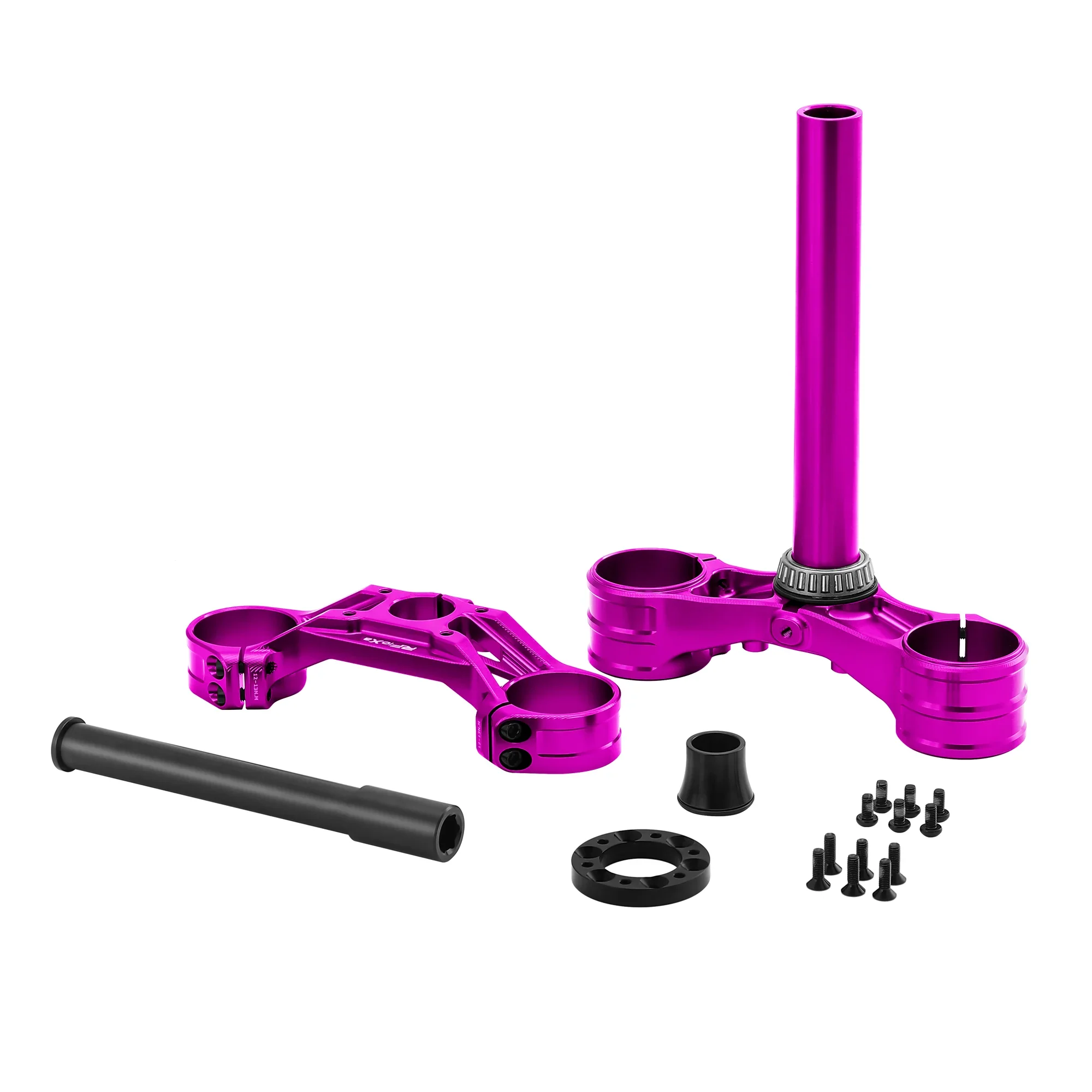

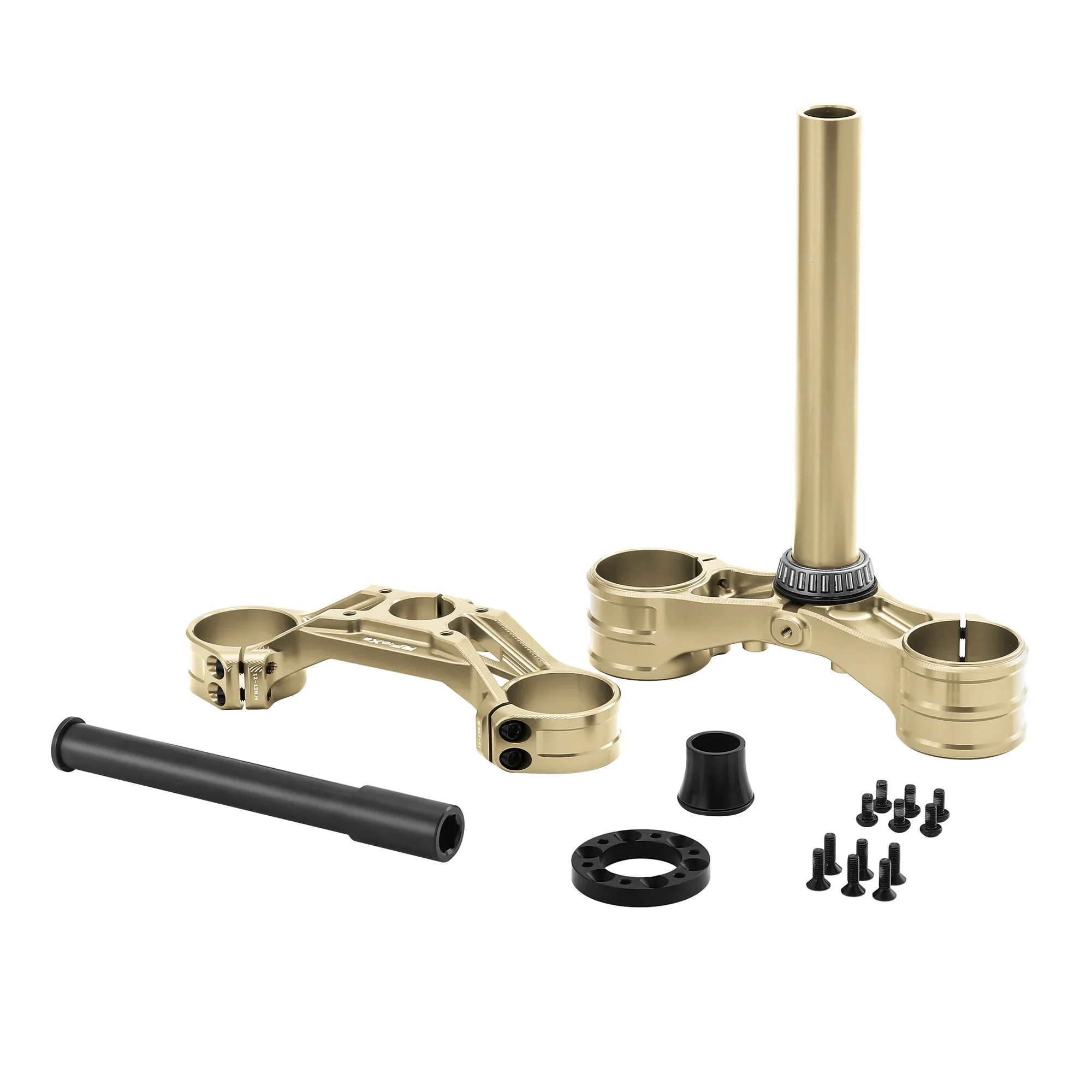

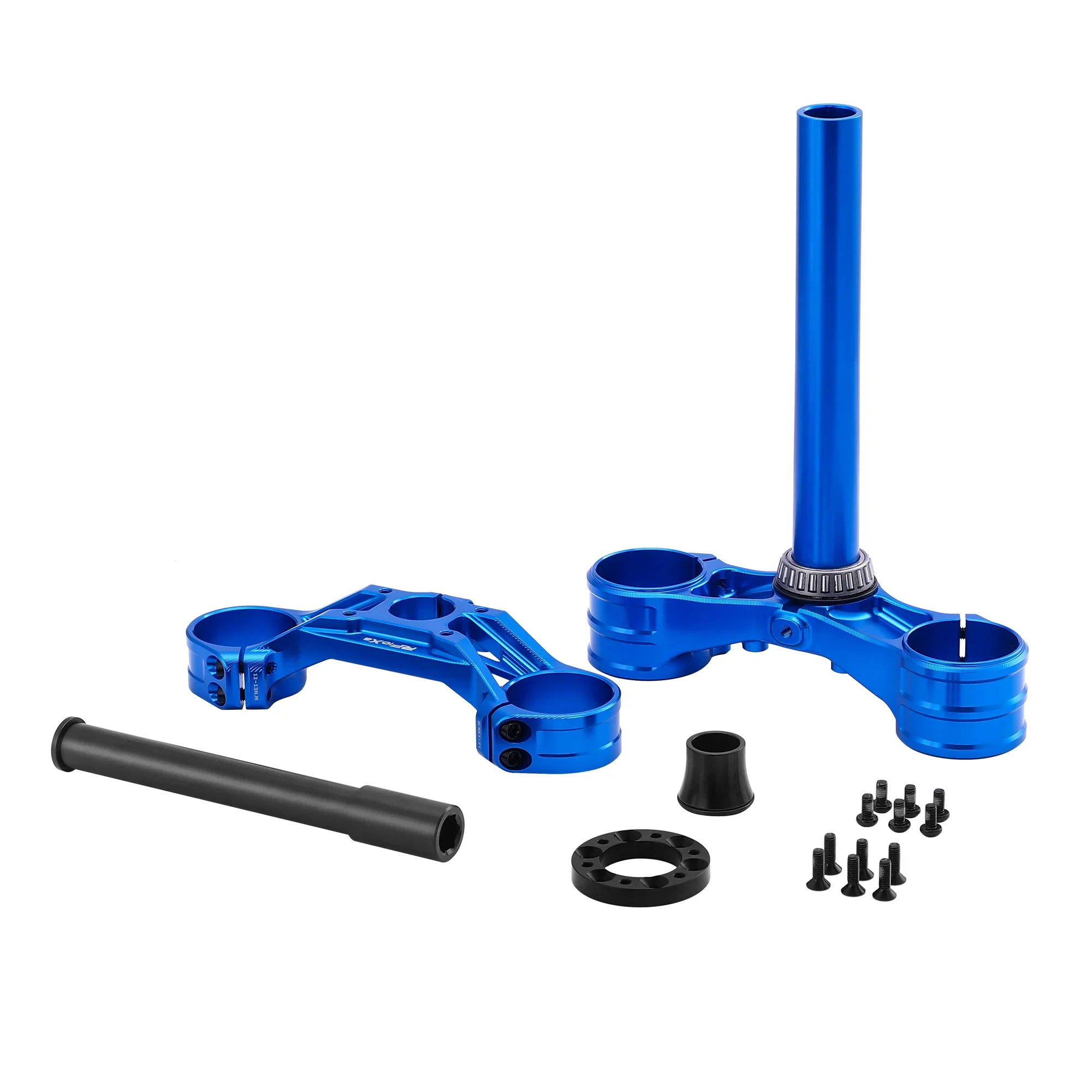

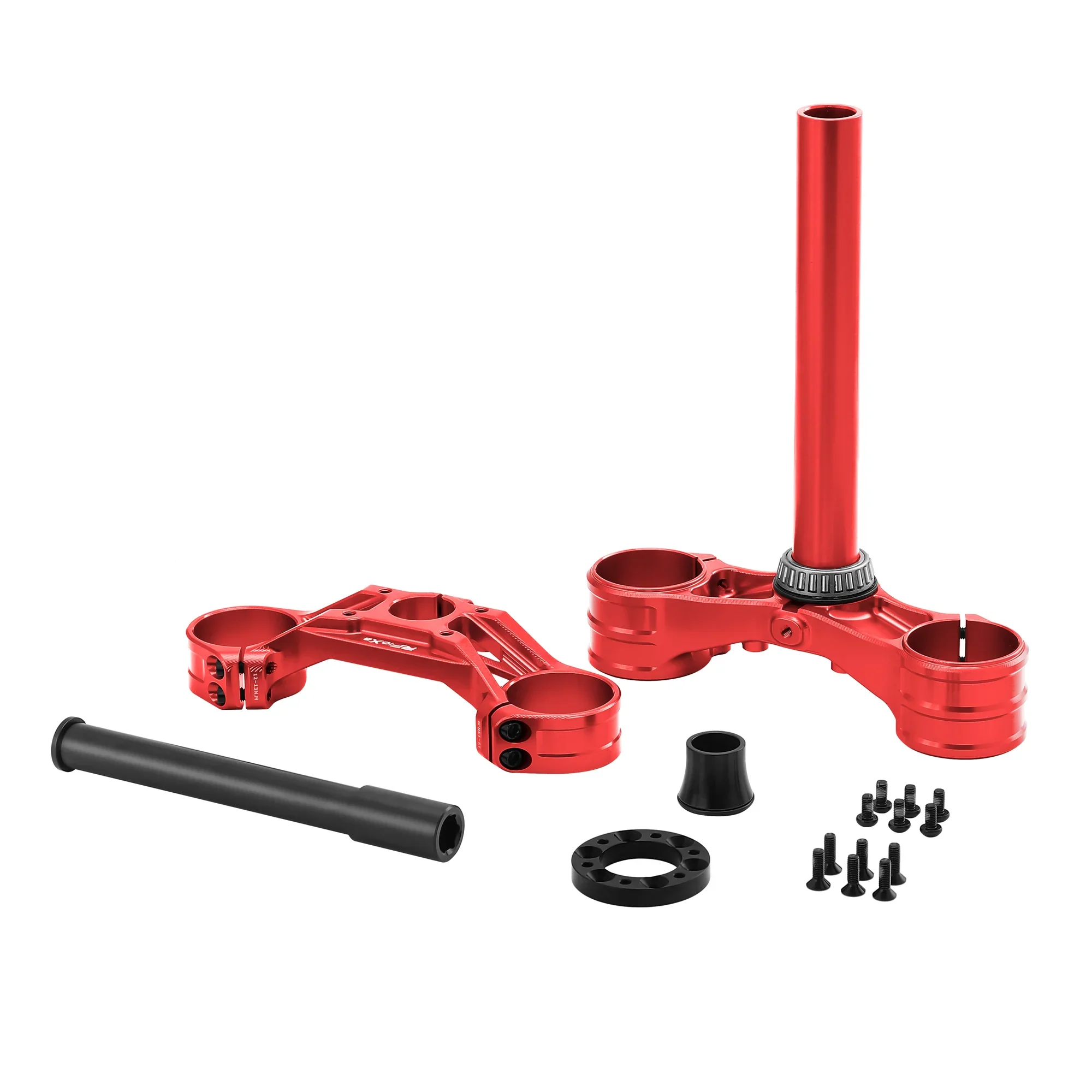

📦 Kit Includes:



Part	Material	Qty
Upper + Lower Triple Clamp + Steering Stem	CNC Aluminum	1 Set
Widened Front Wheel Axle	AL6061	1
Axle Sleeve (Left)	AL6061	1
Axle Nut	AL6061	1
Hub Washer	AL7075	1
Countersunk Hex Screws	40CR	6
Umbrella Head Phillips Screws	40CR	6
Press-fit Bearing	–	1



---



🎨 Color Options:

• Black

• Titanium Gold

• Red

• Blue

• Purple

All finishes are anodized to match RFLOXA forks for a clean, cohesive look.



---



✅ Compatibility:

This triple clamp system is designed for:

• RFLOXA Hawk31 / Hawk32 / PRO Forks

• FastAce ALX13RC / AHX12RV Forks



Compatible With:

• Talaria Sting MX3 / MX4 / MX5

• Sur-Ron Light Bee (LBX, LBS, L1E)

• E-Ride Pro S / SS / SR (1.0 – 3.0)

• Segway X260 / X160

⚠️ Important Fitment Note:

This kit was designed around factory wheel cores. If your bike uses non-stock front wheel cores or aftermarket hubs, some modification or adapter spacing may be required.



---



💬 FAQ

Q: What’s the benefit of a drop crown triple clamp?

A: The 17mm drop allows you to lower the fork tubes deeper than factory setup — giving you a lower cockpit, better control, and room for taller tires or extended-travel forks (like the Hawk 228mm).

Q: Does it fit 220mm or 240mm rotors?

A: Yes! The included flange spacer supports 203mm rotors, and with the correct caliper mount, it can also support 220mm and 240mm rotors with even braking force.

Q: Is this clamp compatible with Volar or Rippin Moto brakes?

A: Not directly. However, it is compatible with a collet-style adapter. If you’re running Volar Sport or Rippin Moto brakes, let us know — we can help source what you need.
