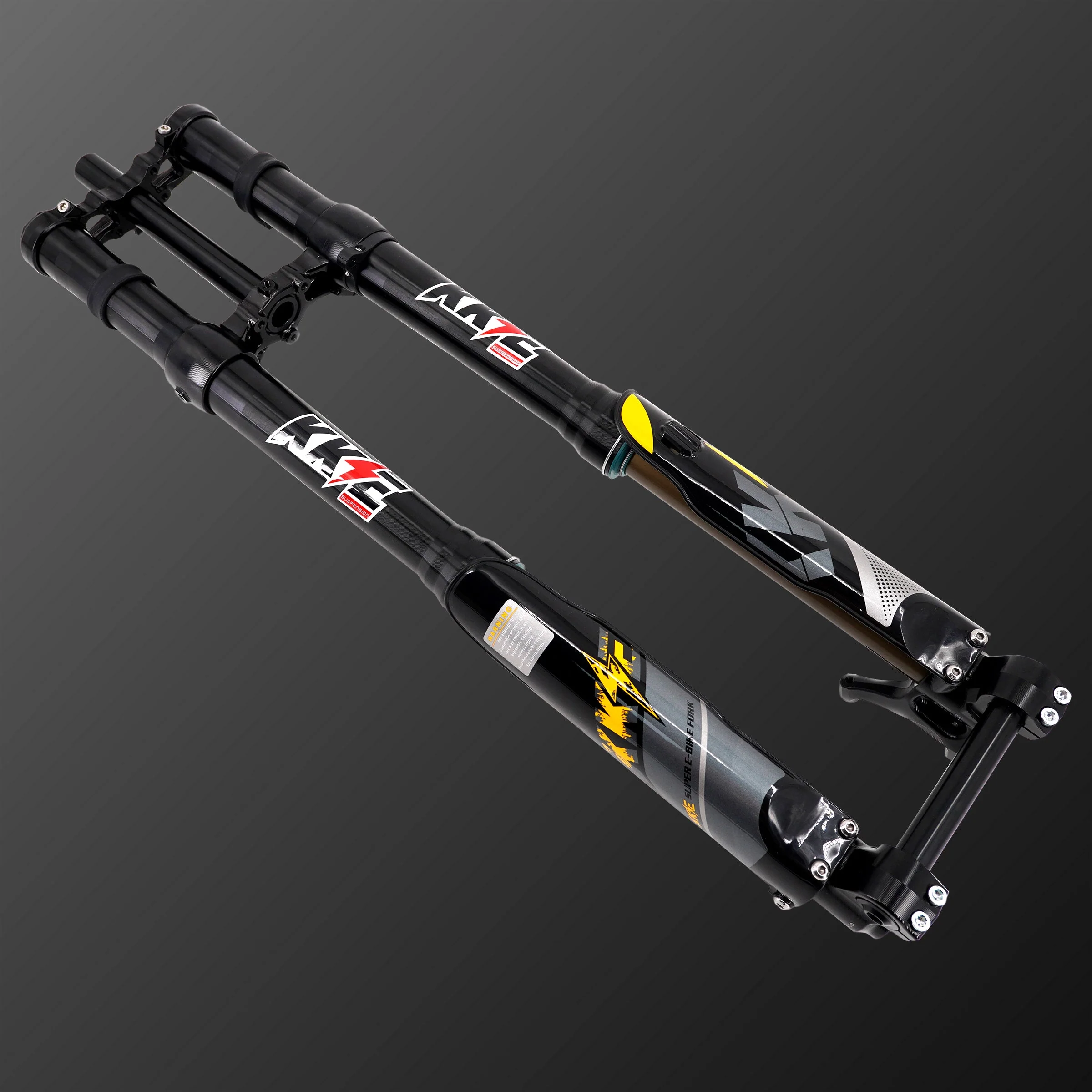

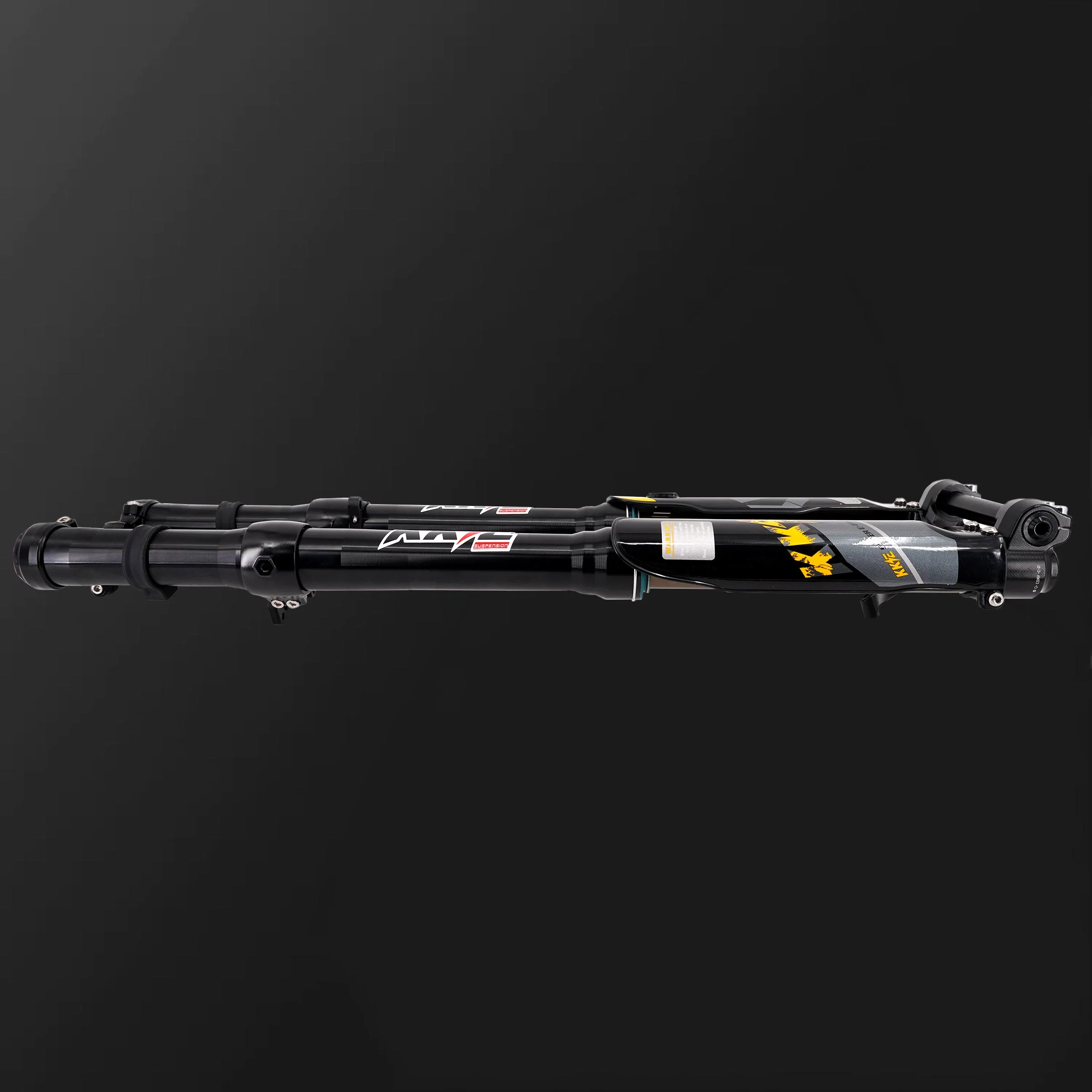

KKE 37MM Aluminum Front Fork Suspension Kit Fit SURRON Light Bee, E-Ride Pro-SS, Talaria Sting MX3/MX4/R

KKE 37MM Aluminum Front Fork Suspension Kit Fit SURRON Light Bee, E-Ride Pro-SS, Talaria Sting MX3/MX4/R, Rerode, 79bike

Specifications:

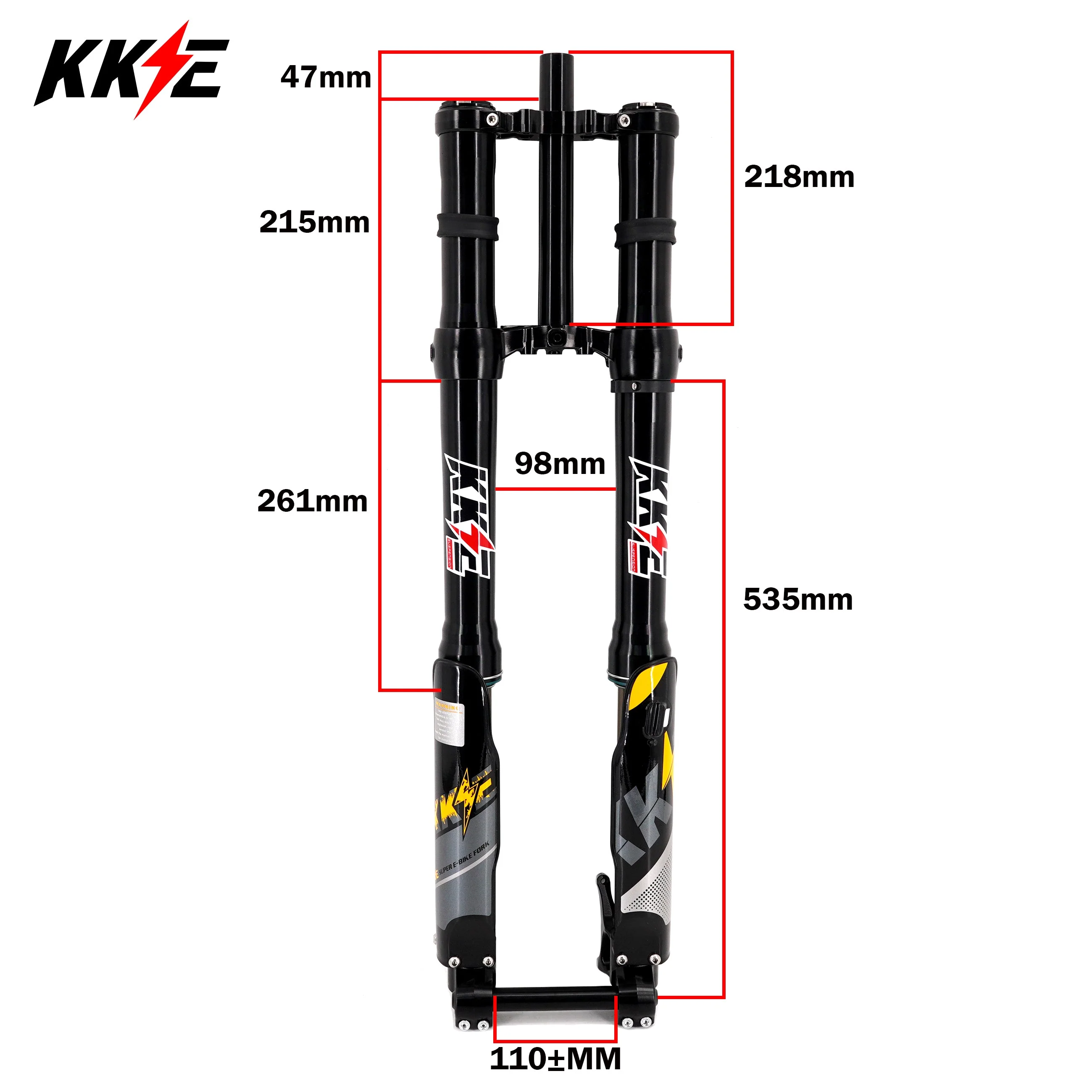

Length （Axle to Crown): 750mm
Travel: 210mm
Fork Offset: 32mm
For Rider Weight: 46lbs Spring (23Ibs on each side) Fit 175pounds~220pounds riders weight
Architecture: Upside down fork
Stanchions: 37mm, 7000 aluminum hard anodized coating
Outer tubes: 6069 aluminum, anodized black

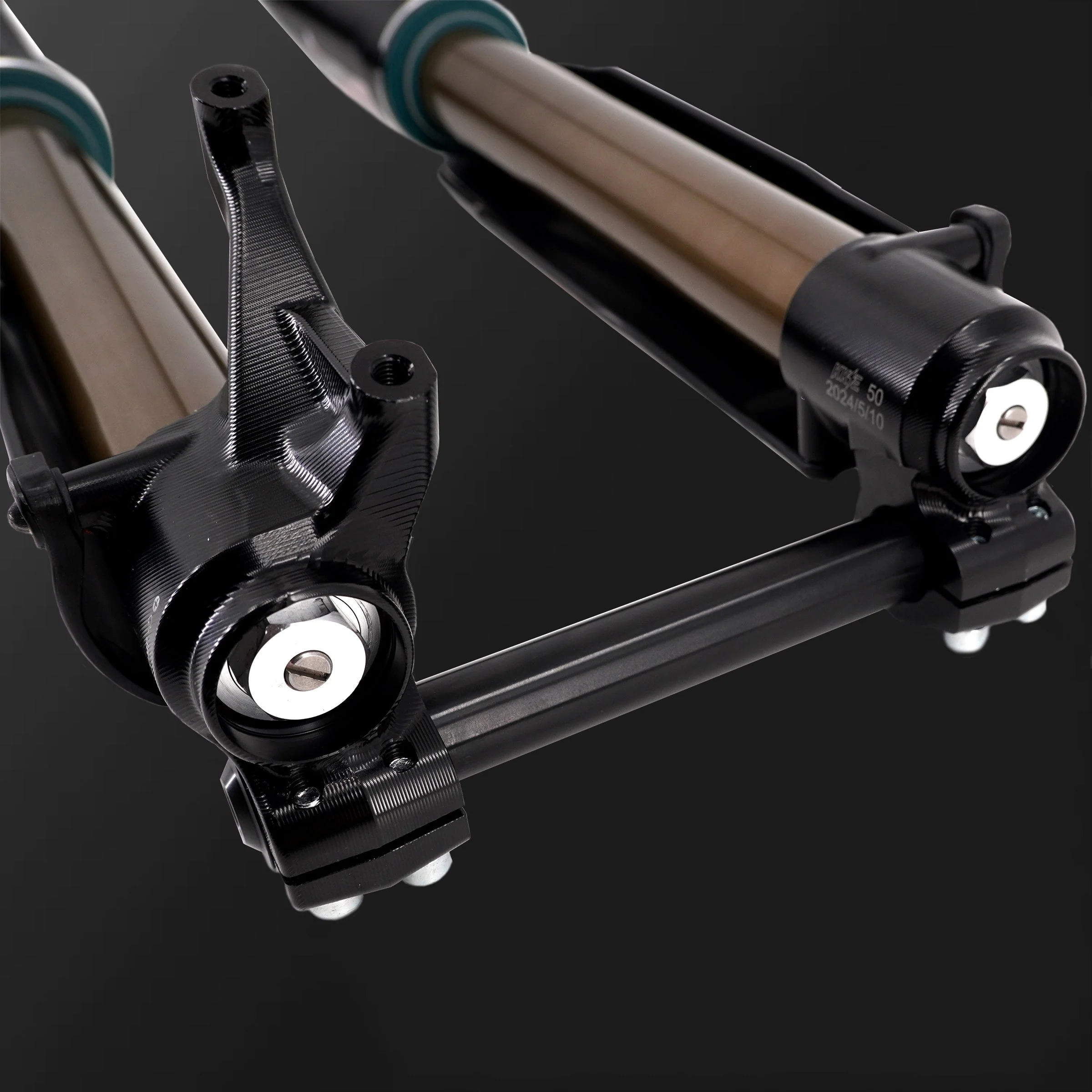

Dropouts: 6061 aluminum, anodized black

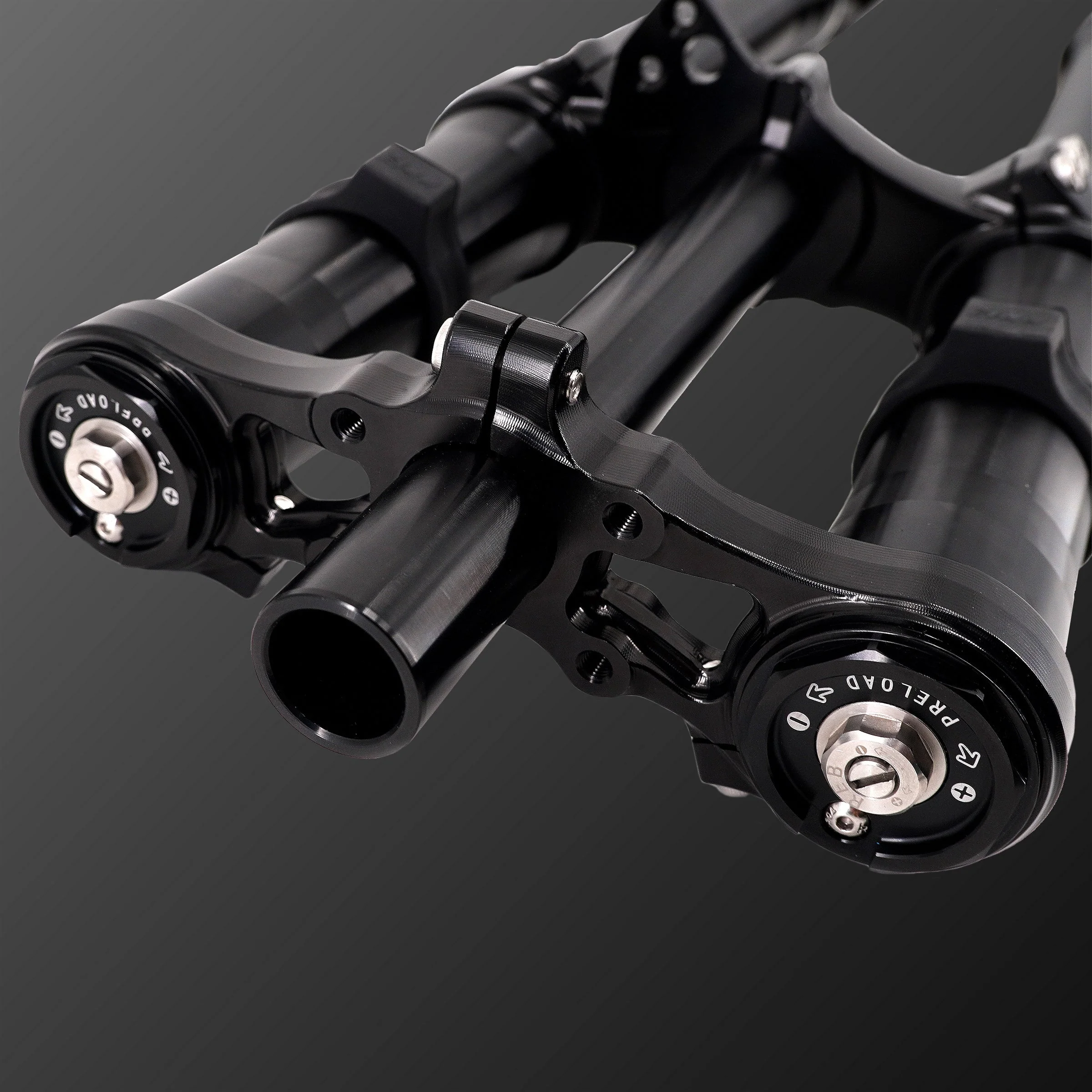

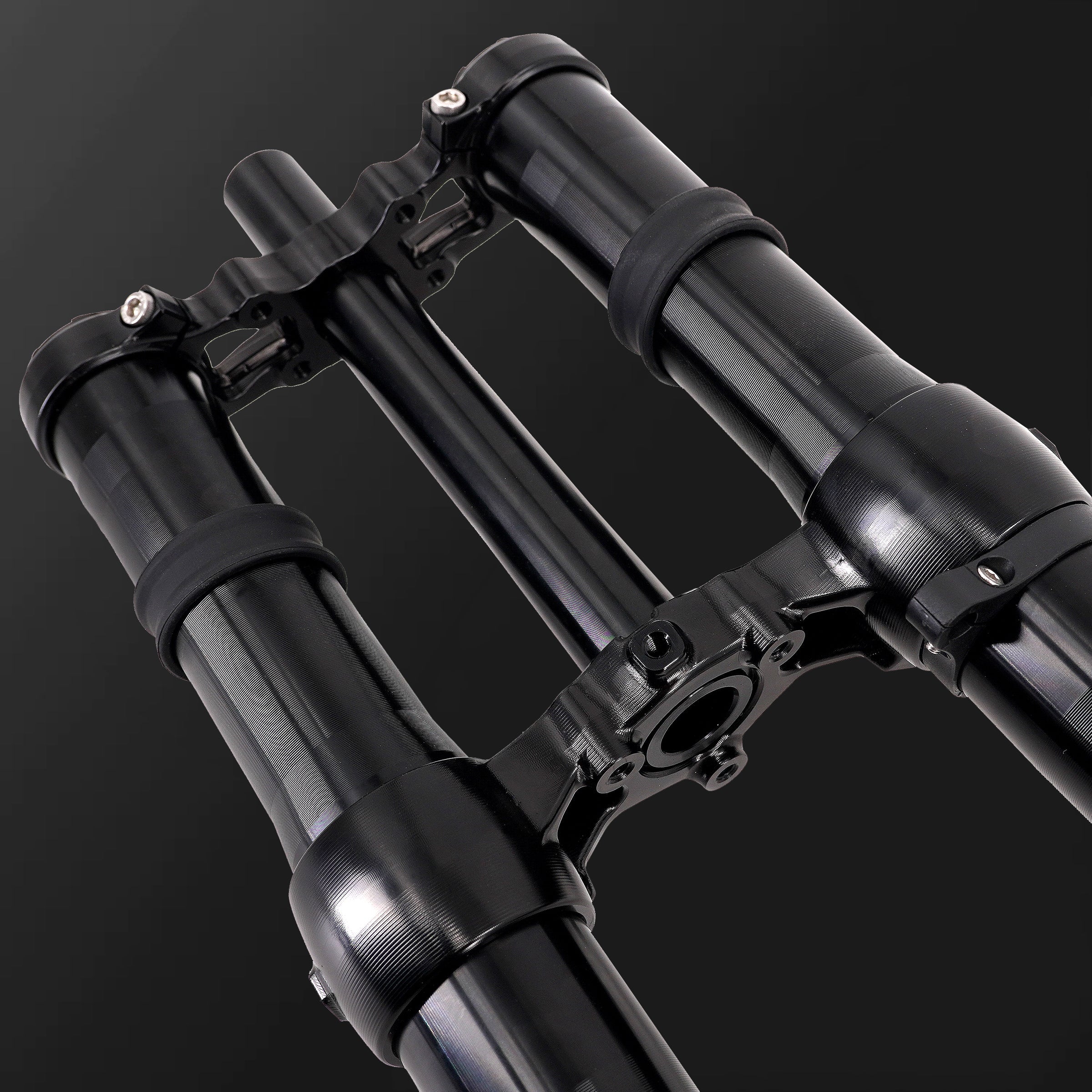

Triple clamps: 6061-T6 aluminum, CNC-machined finishing
Steer tube: 28.6mm,6061-T6 aluminum
Damping: Symmetrical, adjustable open cartridge
Damper bodies: 7050-T6 aluminum, anodized coating
Weight: 5.3kg(include triple clamp set)

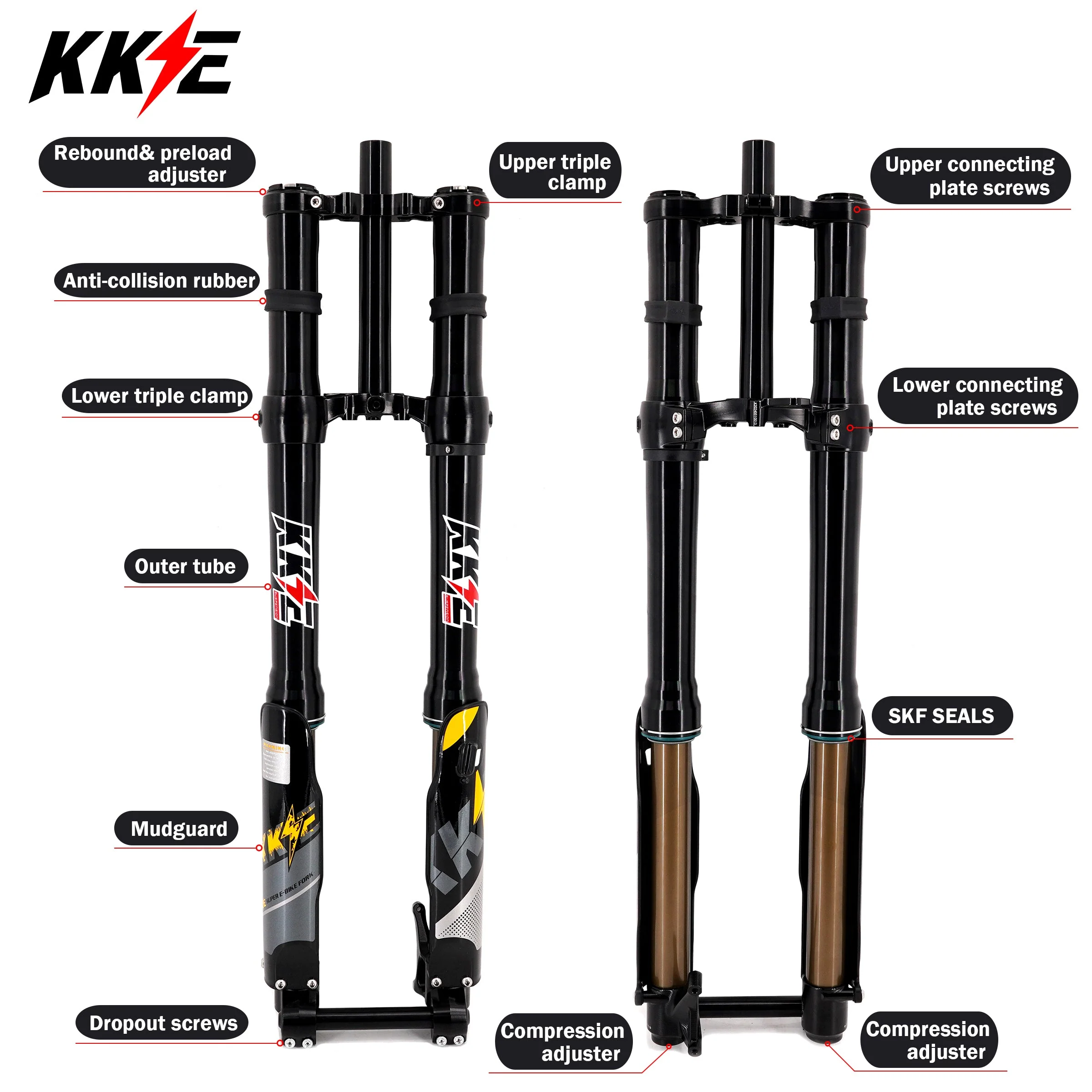

Adjustments: Compression, Rebound,Preload
Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
Seals: SKF
Guards: PP
Spring: Coil

Features:

1. Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing

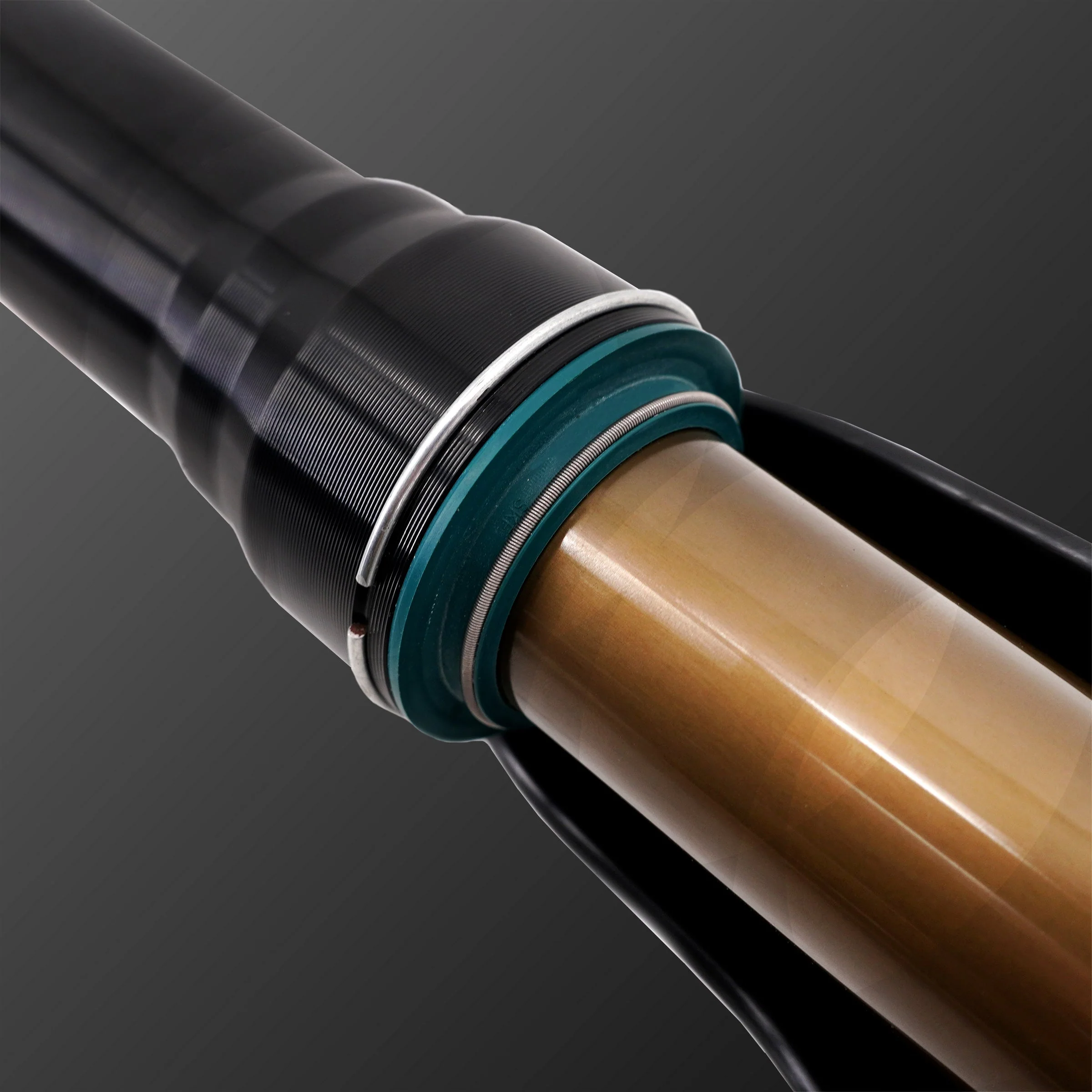

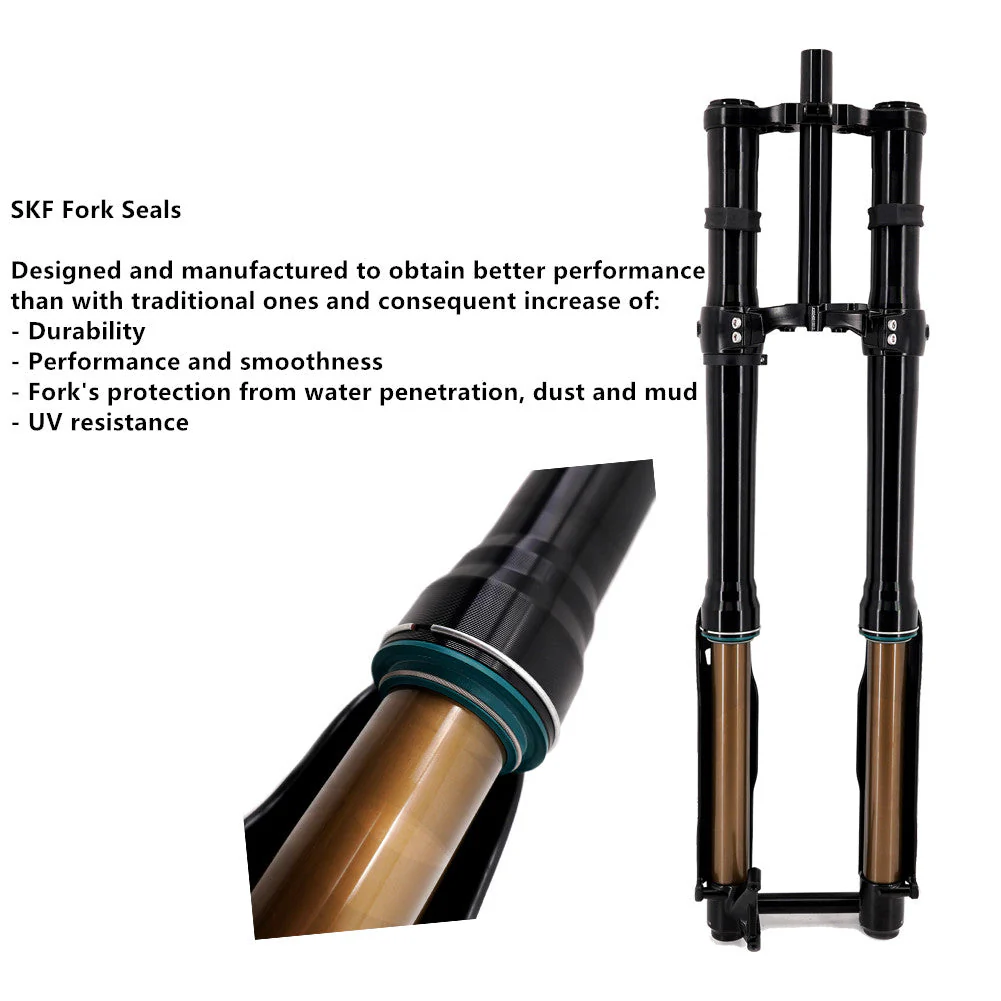

2. SKF oil seals and dust seals ,less friction ,more smooth

3. Alloy fork tube with DU-bushing guiding design ,better stiffness and torsional rigidity

4. 7000 alloy inner tube with hard-anodizing treatment surface

5. Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end

6. Every clicker of the compression/rebound / adjustment will find its way in different scenario

7. CNC triple clamp ,less weight ,more stiffness ,better looking

Recommendation for Riders:

KKE Front Fork assembly with 46lbs Spring (23Ibs on each side) Fit 175pounds~220 pounds Riders Weight
Note: If you have any other request or over weight, please feel free to contact us for more details

Fitment:

Fit Talaria Sting MX3 / MX4 / R
Fit E-Ride Pro-SS 2024
Fit Surron Light Bee

⚠️ Frame Clearance Notes:

Some bike models may require minor grinding/modification to ensure proper fork clearance:

Talaria MX4 / Sting R may need light grinding on the fork outer tube to prevent contact with the frame (similar to how Fox 40 installs on Surron).
We recommend inspecting your fork/frame spacing carefully before install. Reach out if you have questions—we’re here to help.

⚠️ Important Notes (Front Fork Only):

Currently not plug-and-play with larger brake calipers found on:
- Altis Sigma
- SRPNT Moto
- E-Ride Pro SS 3.0
- E-Ride Pro SR

These bikes require a brake adapter that is not yet available — but it’s in the works! If you’re using Volar Sport Racing calipers, we can special order a front adapter for you. Just shoot us a message and we’ll make it happen.

Package Included:

Assembled Front Fork 1set
Note: We matched left mudguard & right mudguard, Not installed!

Color:

Black

Placement on Vehicle:

Front Fork

Maintenance:

Your fork requires periodic maintenance, cleaning, and inspection. Torque values of bolts and fasteners must be checked periodically, more often if riding in extreme conditions. To maintain top performance, it is recommended that the fork be periodically disassembled, cleaned, dried and re-lubricated.

SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)

Contact Us:

If you have any question or needs, just feel free to contact us!
Email: [email protected]
