EBMX Core motor, v3 controller Power Upgrade Bundle for Emoto | By Ebmx
EBMX XLB-60 CORE Motor + X-9000 V3 Controller Bundle
Plug & Play Power Kit
For E-Ride Pro, Sur Ron, 79 Bike
Complete Power Upgrade – CORE Motor + Controller + Display + Throttle
Unleash real-world performance with this EBMX CORE Bundle built for riders who want serious torque, smooth power delivery, and reliable off-road performance. This full plug-and-play kit includes the XLB-60 CORE motor, X-9000 V3 controller, display, throttle, and harness pre-configured for your bike.
Whether you're riding a Sur Ron, E-Ride Pro, or 79 Bike Falcon, this bundle transforms your e-moto into a responsive, high-output machine that rides smoother, pulls harder, and climbs stronger.
What’s Included
- EBMX XLB-60 CORE Motor
- Custom EBMX Bash Plate (bike-specific fitment)
- EBMX X-9000 V3 Controller (Air-Cooled)
- EBMX SW102T Full-Color Display
- Thumb Throttle
- Bluetooth Tuning Module
- 1–2 Adapter Harness (bike-specific)
- Controller Mounting Brackets

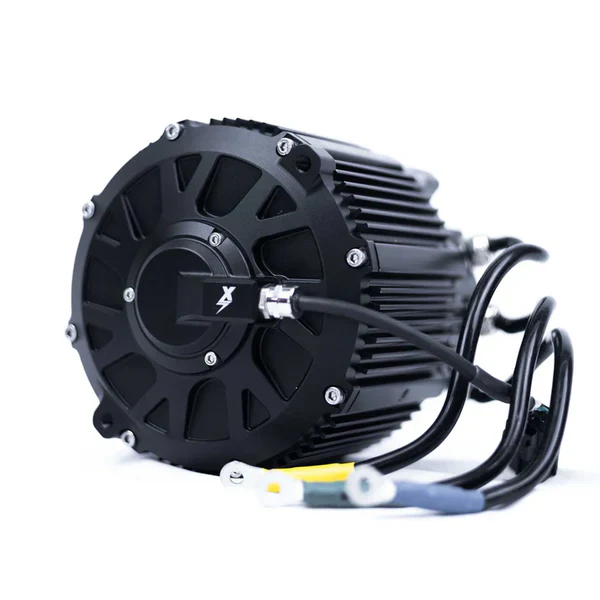

XLB-60 CORE Motor Highlights
- 64mm stator for strong electric output and torque
- 87KV motor delivering up to 41kW peak @ 90V
- Real-world output: 32–35kW on 72V (20S) setups
- 12,000 RPM limit for crisp throttle feel
- IP67 waterproofing + 180°C winding temp rating
- Custom internal rotor with encoder-based motor control
- Includes EBMX bash plate for plug-in protection
- Built for trail riders, jump lines, and technical off-road
Recommended CORE Gearing:
- 18” rear wheel → 52T
- 16” rear wheel → 48T

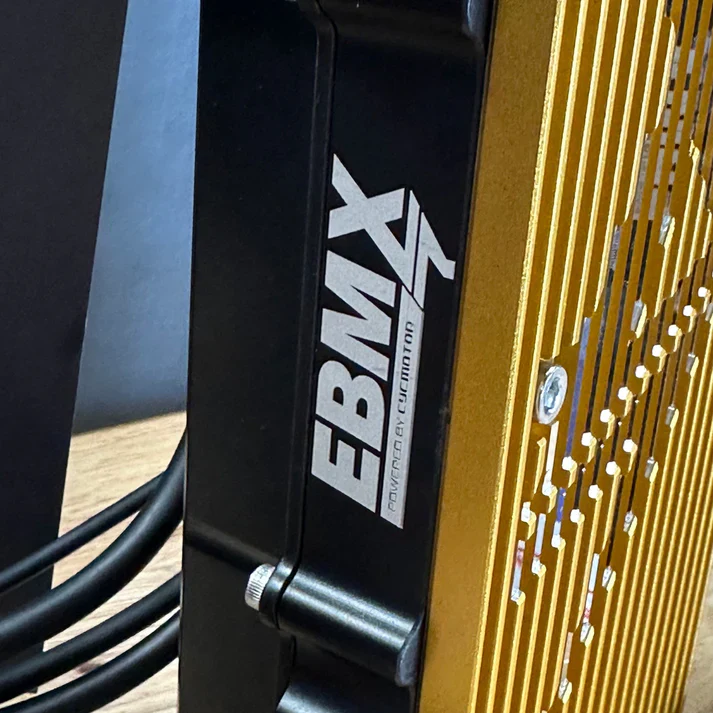

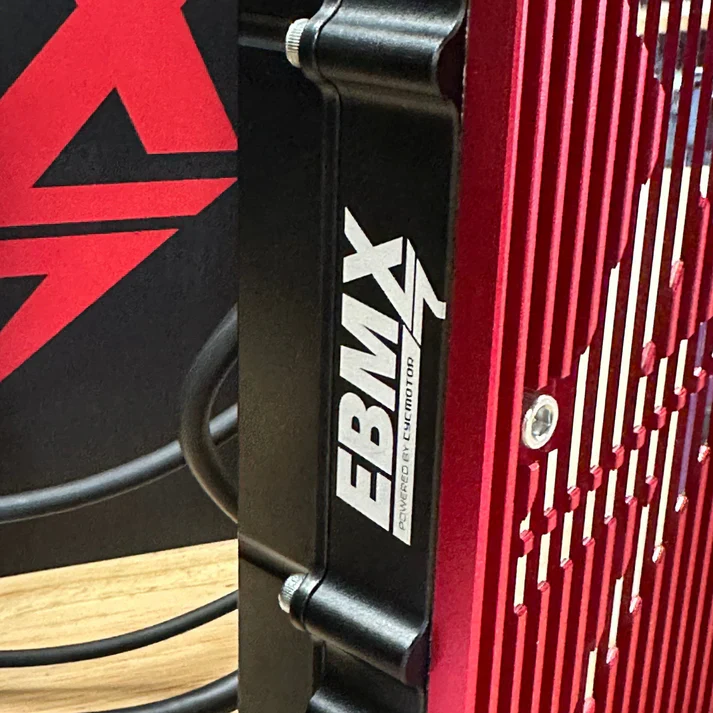

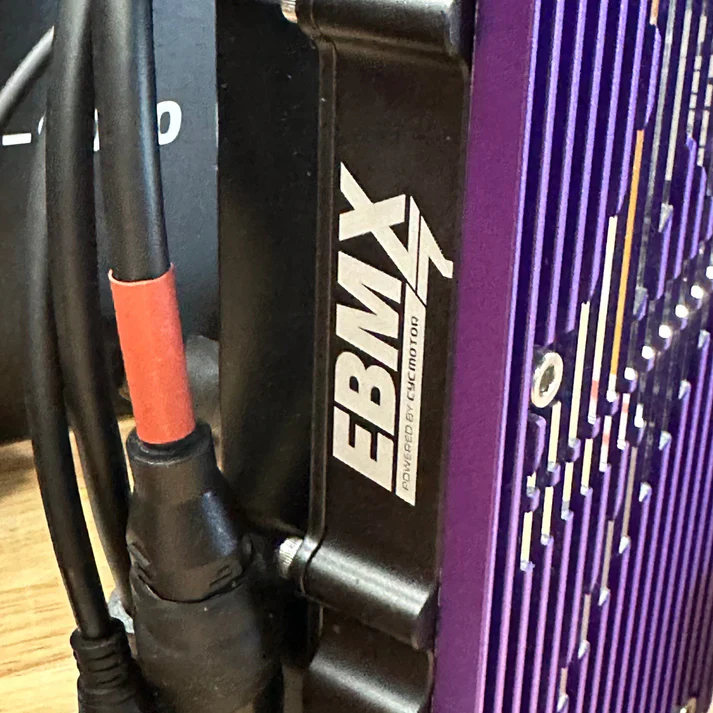

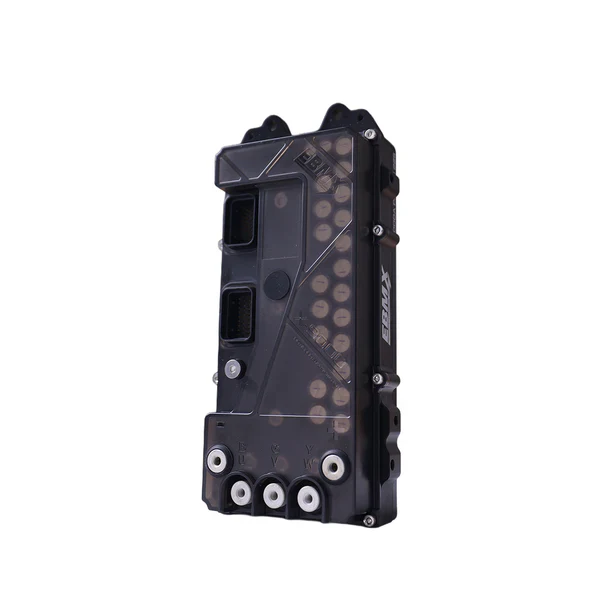

X-9000 V3 Controller Highlights
- 30x Infineon MOSFETs: 50kW continuous / 60kW peak output
- Supports 48–120V systems with 1600A burst current
- Fully tunable via EBMX Bluetooth app
- Live settings for regen, throttle curves, max amps
- Includes E-Clutch, Wheel Lift Assist, and Race/Street modes
- Custom VESC firmware on 6-layer PCB with CNC copper busbars
- IP67 waterproof housing with air-cooled alloy heatsink
Fitment
- Sur Ron Light Bee / LBX
- E-Ride Pro SS 2.0 / SS 3.0 / SR
- 79 Bike Falcon S / Pro
Note: Harness and bash plate are pre-configured for your selected bike model. Fully plug-and-play out of the box when ordered from REV.
Color Options
- Motor Bash Plate: Black, Red, Blue, Gold, Purple

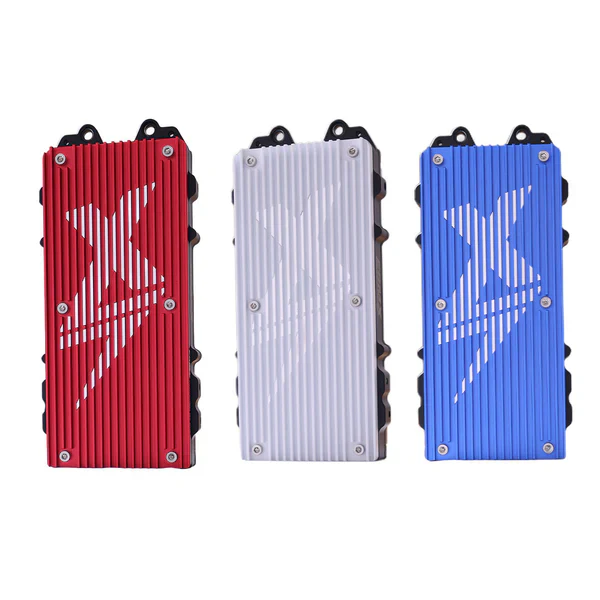

- Controller Heatsink: Black (default) • Red • Blue • White • Purple • Gold
Warranty
2-Year EBMX Warranty when CORE Motor is used with the X-9000 V3 Controller. Covers manufacturer defects and performance issues under off-road use.
Important Safety Info
- For off-road use only — not legal for public streets
- Experienced riders only — serious torque and speed
- Upgrade brakes, tires, and suspension before installing
- Always follow local laws and safety guidelines
Need help dialing in your gearing or tuning profile? Reach out to the REV Rides team — we ride what we sell.
