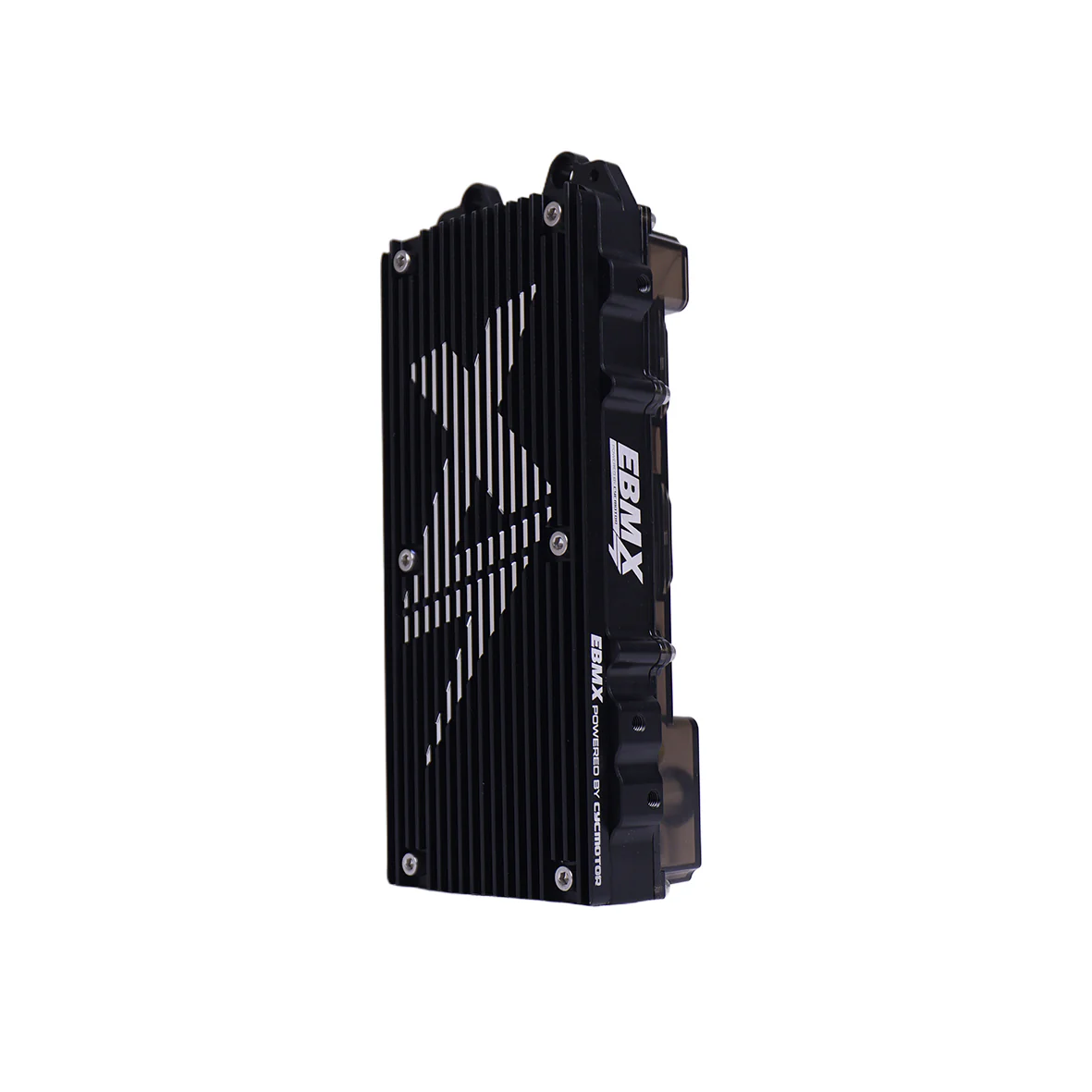

EBMX X-9000 V3 Controller
& Wiring Harness (Full Kit)

for Sur-Ron, Talaria, E-Ride Pro, Altis Sigma & More

The all-new EBMX X-9000 V3 Controller Kit is in stock, and shipping now! The EBMX X-9000 V3 controller is a complete redesign of the industry-leading V2 controller. After 18 months of testing and refinement, the X-9000 V3 electric dirt bike controller delivers unmatched performance, thermal efficiency, and plug-and-play compatibility with Sur Ron, Talaria, E-Ride Pro, Atlis Sigma, and other high-performance E-Moto platforms.

Built for serious riders and racers, this is more than the average aftermarket electric dirt bike controller — it’s a fully integrated, highly tunable, maximum performance ecosystem.

What's New with the EBMX X-9000 V3:

30x Infineon MOSFETs for 50kW continuous / 60kW peak power output
6-layer PCB and CNC copper busbars – 30% cooler operation than V2
Slimmer rear profile for better fitment
New square-set plug system to prevent pin damage
Removable harness for easier servicing
Supports 120V builds (no longer limited to 72V)
Integrated IMU with Wheel Lift Assist
EBMX X-Series App: Full throttle, regen, and motor tuning via Bluetooth
Updated SW102T Color Display with customizable metrics

App & Display Integration:

Live tuning: Regen, throttle curve, max amps, motor settings
Load-and-Go Profiles: Choose presets by bike or battery type
Modes: Street / Race, plus 3-level assist & EBMX E-Clutch
Live Metrics: Power output, RPM, temp, speed, distance, regen, etc.

X-9000 Fitment / Compatibility:

This controller is plug-and-play for:

Sur Ron Light Bee / Ultra Bee
Talaria MX3 / MX4 / MX5 / XXX
E-Ride Pro SS 2.0 (V3 Battery)
E-Ride Pro SS 3.0 (Breaker & Non-Breaker Versions)
E-Ride Pro SR
ReRode R1
QS138 70H / 90H
79 Bike Falcon S / Pro
Altis Sigma (coming soon)

* V2 harnesses are NOT compatible with V3.

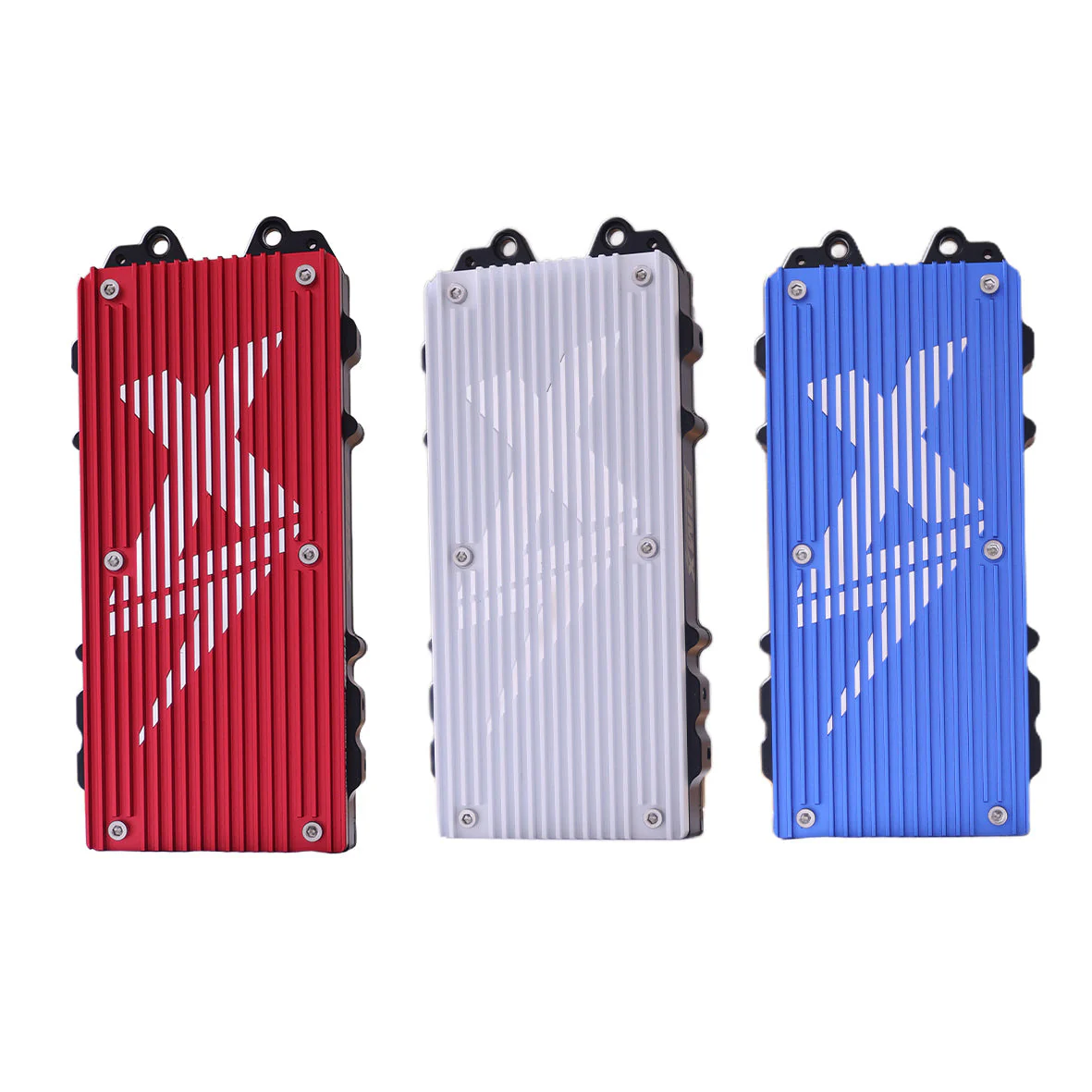

** Colored heatsinks available (Red, Blue, White, Purple, Gold)
*** Water-cooled upgrade option available for high-endurance race builds.

Compatible Motors (Preloaded Tunes):

OEM Sur Ron / Talaria / E-Ride Pro motors
EBMX XLB-60, XTA-60, XUB-80
KO RS & KO F Spec
QS138 70H / 90H
30+ supported motor profiles out of the box

Full Kit Includes:

EBMX X-9000 V3 Controller
Air-Cooled Heatsink
SW102T Full-Color Display
Thumb Throttle
Bluetooth Module
Mounting Brackets
1–2 Wiring Harness Adapter
IP67-Rated CNC Alloy Housing

X-9000 V3 Specifications:

Spec	Detail
Rated Power	50kW Continuous / 60kW Peak
Voltage	Up to 120V (48–110V Operating)
Phase Current	1000A Continuous / 1600A Burst
Control Protocol	Field-Oriented Control (FOC) – VESC
Firmware	Custom EBMX VESC
IMU Support	Wheel Lift Assist & E-Clutch
Waterproofing	IP67 Rated
Operating Temp	-25°C to 80°C
Warranty	2 Years
Heat Sink Colors	Black (included) / Red / White / Blue/ Purple / Gold

Built for Riders Who Want:

Maximum power + smooth throttle feel
Full adjustability from their phone
Reliable, thermally stable high-performance output
Seamless tuning, no laptop required
Safer wheel control with built-in IMU
